How to Deploy Strapi as a Content Backend and Headless CMS on Koyeb

17 min

Introduction

Strapi is a headless CMS that helps you build content-based sites with the frontend of your choice by providing a reliable, customizable API backend. Strapi allows you to define your own content types, includes a feature-rich admin panel, and provides all of the building blocks you need to develop a comprehensive editing and publication workflow.

In this tutorial, we will show how to create a Strapi instance and deploy it to Koyeb. The application will use an external PostgreSQL database for performance and data integrity and will use Backblaze B2 to store uploads persistently across deployments.

You can consult the repository for this guide to follow along on your own. You can deploy the Strapi application by clicking the Deploy to Koyeb button below:

Deploy to Koyeb

Be sure to modify all of the environment variable values to reflect your own data. You can consult this guide if you need additional information on appropriate values.

Requirements

To successfully follow and complete this guide, you need:

  • A Koyeb account to provision the PostgreSQL database and to build and deploy the Strapi application.
  • A Backblaze B2 account to store images and other uploads used within your content.
  • Node.js and the npm package manager installed on your local computer.

Steps

To complete this guide and deploy a Strapi application, you'll need to follow these steps:

  1. Create a new Strapi repository on your local computer
  2. Create content types
  3. Configure the Strapi object storage behavior
  4. Push the project to GitHub
  5. Provision a Backblaze B2 object storage bucket
  6. Provision a PostgreSQL database on Koyeb
  7. Deploy Strapi to Koyeb
  8. Create a production administration account and test functionality

Create a new Strapi repository on your local computer

To get started, you'll need to create a new Strapi repository on your local machine.

The following command will create a new Strapi instance in a directory called example-strapi. It will use npm as the package manager:

npx create-strapi-app@latest --use-npm --no-run example-strapi

When prompted, select Quickstart to provision a JavaScript project initially configured to use a local SQLite database (we'll change this momentarily). This will create a new example-strapi project directory with the core application files and install all of the necessary dependencies.

Navigate into the new project directory and install the pg and @strapi/provider-upload-aws-s3 packages with npm. This will allow us to configure Strapi to store its data externally when we deploy to production later:

cd example-strapi
npm install pg @strapi/provider-upload-aws-s3

Create content types

Certain Strapi features are only available when running in development mode. Perhaps the most important of these is the ability to configure content types. You can add content to Strapi in development or production mode, but you can only adjust the content types in development mode.

To create our first content types, start up the development server locally:

npm run develop

Strapi will start up and create a local SQLite file as the database. Afterwards, it will open a browser page to the admin account creation form (you can visit http://localhost:1337 if this page does not automatically open):

Strapi admin account creation

Fill in your info to create a local administration account. Since our development instance and our future production deployment will use different databases, this version of the administration account will only be used locally.

Once you create an account, you will be taken to Strapi's admin dashboard:

Strapi admin dashboard

From here, you can create your first content types. Click Create your first Content type or visit the Content-Type Builder plugin in the navigation sidebar.

On the page that follows, click Create new collection type under the Collection Types section:

Create new collection type

A form will appear where you can configure the collection type. We will configure a "post" collection type as an example. Enter Post in the Display name field and click Continue:

Create post type

Select Text to add a text field:

Add text field

Enter title in the Name field:

Name text title

Click Advanced Settings and select the Required field and Unique field boxes:

Configure title field

Click Add another field and follow the same process to define the following fields:

Field typeNameOther settings
Rich text (Blocks)bodyRequired
DatepublishedType: date (ex: 01/01/2024)

Click Finish when you're finished. In the Post content type, click Save in the upper-right corner to commit the changes:

Save post type

Strapi will commit the changes and restart.

Next, click Create new collection type again to create a collection called Tag with the following fields:

Field typeNameOther settings
TextnameRequired, Unique
Relation(none)Select the icon with the "has and belongs to many" description

Again, click Finish when you've configured the final field and then click Save to commit the changes and restart Strapi:

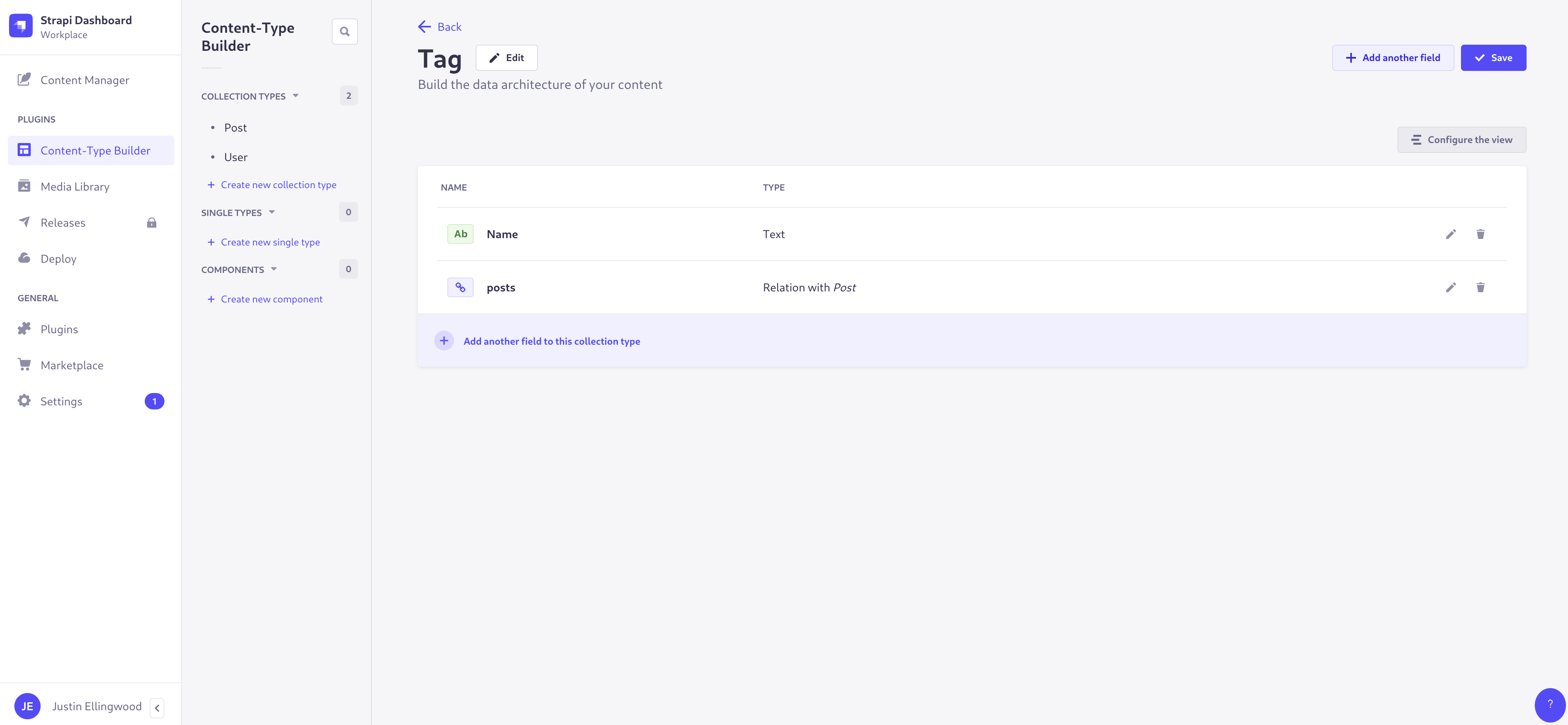

Save tag type

With the content type configuration complete, stop the development server by pressing CTRL-C.

Configure the Strapi object storage behavior

During development, Strapi places any images or other uploaded files on the local filesystem. This works great when operating locally, but doesn't fit the environment we will use for production where files stored on the local filesystem will be lost during redeployment.

To address this, we will configure Strapi to upload images and other files to an S3-compatible object storage provider when running in production. We will provision a Backblaze B2 instance to fill this role when preparing to deploy later on, but we can get started by configuring Strapi with this behavior.

In the config directory, create a set of nested directories called env/production to configure production-specific behavior:

mkdir -p config/env/production

Files inside this directory will take precedence over their counterparts in the bare config directory when running in the production environment. Strapi will use the files in the bare config file when not running in production or when it cannot find the appropriate file in the environment-specific directory.

Inside the new directory, create a plugins.js file with following contents:

// File: config/env/production/plugins.js

module.exports = ({ env }) => ({
  upload: {
    config: {
      provider: 'aws-s3',
      providerOptions: {
        s3Options: {
          credentials: {
            accessKeyId: env('S3_ACCESS_KEY_ID'),
            secretAccessKey: env('S3_ACCESS_SECRET'),
          },
          region: env('S3_REGION'),
          endpoint: 'https://' + env('S3_ENDPOINT'),
          params: {
            ACL: 'private',
            Bucket: env('S3_BUCKET'),
          },
        },
      },
    },
  },
})

This file configures the upload module to use an S3-compatible object storage provider instead of the local filesystem. It takes its configuration data from environment variables beginning with S3_. We will define these during deployment to reference our Backblaze B2 bucket.

Next, we need to alter Strapi's security middleware configuration so that it will allow content hosted in our object storage bucket. Without this extra step, the middleware will block the content from loading as a security precaution.

Create a middlewares.js file in the config directory and add the following code:

// File: config/env/production/middlewares.js

module.exports = ({ env }) => [
  'strapi::logger',
  'strapi::errors',
  {
    name: 'strapi::security',
    config: {
      contentSecurityPolicy: {
        useDefaults: true,
        directives: {
          'connect-src': ["'self'", 'https:'],
          'img-src': [
            "'self'",
            'data:',
            'blob:',
            'market-assets.strapi.io',
            env('S3_BUCKET') + '.' + env('S3_ENDPOINT'),
          ],
          'media-src': [
            "'self'",
            'data:',
            'blob:',
            'market-assets.strapi.io',
            env('S3_BUCKET') + '.' + env('S3_ENDPOINT'),
          ],
          upgradeInsecureRequests: null,
        },
      },
    },
  },
  'strapi::cors',
  'strapi::poweredBy',
  'strapi::query',
  'strapi::body',
  'strapi::session',
  'strapi::favicon',
  'strapi::public',
]

Again, we are configuring Strapi to configure its policies based on S3_ environment variables. In this case, the expected format for the bucket URL differs from the format used in the plugins.js file, so we concatenate the necessary values to build the expected strings.

Push the project to GitHub

You are now ready to commit your Strapi configuration to git and upload it to a GitHub repository. Strapi automatically created a git repository complete with a relevant .gitignore file when it initialized the project.

Create a new GitHub repository and then run the following commands to commit and push changes to your GitHub repository:

git add :/
git commit -m "Initial commit"
git remote add origin git@github.com:<YOUR_GITHUB_USERNAME>/<YOUR_REPOSITORY_NAME>.git
git branch -M main
git push -u origin main

Note: Make sure to replace <YOUR_GITHUB_USERNAME> and <YOUR_REPOSITORY_NAME> with your GitHub username and repository name.

Provision a Backblaze B2 object storage bucket

In a serverless environment, content stored on the local filesystem is ephemeral and will be lost when redeploying or reconfiguring the application. We need to create an S3-compatible object storage bucket where Strapi can store images and files uploaded to our production instance. We will use Backblaze B2 for this.

To create an object storage bucket for Strapi, log into your Backblaze account and follow these steps:

  1. In the B2 Cloud Storage section on the left side of the dashboard, click Buckets.
  2. Click Create a Bucket to begin configuring a new bucket.
  3. Choose a name for the bucket. This must be globally unique, so choose a name not likely to be used by another user.
  4. Set the bucket privacy to Private.
  5. Use the provided defaults for the rest of the settings.
  6. Click Create a Bucket to create the new bucket.

Copy and save the following information about your new bucket. You'll need it later to configure Strapi:

Backblaze B2 itemExample value
Bucket namesome-bucket-name
Endpoints3.eu-central-003.backblazeb2.com

Now that you have a bucket, you need to create API credentials so that Strapi can authenticate to Backblaze as well as upload and manage objects:

  1. In the Account section on the left side of the dashboard, click Application Keys.
  2. Under Your Application Keys, click Add a New Application Key to begin configuring a new key.
  3. Select a name for your key to help you identify it more easily.
  4. Select the bucket you just created in the Allow access to Bucket(s) drop-down menu.
  5. Select Read and Write as the access type.
  6. Leave the remaining fields blank to accept the default policies.
  7. Click Create New Key to generate the new key to manage your bucket.

Copy and save the following information related to your new API key. You'll need it to properly authenticate to your Backblaze account and perform object operations:

Backblaze B2 itemExample value
keyID008c587cb98cb3d0000000003
applicationKeyK002cbYLV/CkW/x+28zsqmpbIAtdzMM

Provision a PostgreSQL database on Koyeb

As mentioned before, we need an external PostgreSQL database during production to store our application data. This will persist our data across deployments and allow for better performance and scalability. We will use Koyeb's PostgreSQL service which includes a free tier.

To deploy a new PostgreSQL database, on the Overview tab of the Koyeb control panel, click Create Database Service. Choose a name for the service and choose the region closest to you or your users.

Once the database is provisioned, click the copy icon associated with psql to save the connection details for later.

Deploy Strapi to Koyeb

Now that the project code is on GitHub and the external storage providers are provisioned, we can deploy our project to Koyeb. On the Overview tab of the Koyeb control panel, click Create Web Service to begin:

  1. Select GitHub as the deployment method.

  2. Select your Strapi project repository. Alternatively, you can enter our public Strapi example repository into the Public GitHub repository field at the bottom of the page: https://github.com/koyeb/example-strapi.

  3. In the Environment variables section, click Bulk edit to enter multiple environment variables at once. In the text box that appears, paste the following:

    HOST=0.0.0.0
    NODE_ENV=production
    DATABASE_CLIENT=postgres
    DATABASE_URL=
    S3_ENDPOINT=
    S3_REGION=
    S3_BUCKET=
    S3_ACCESS_KEY_ID=
    S3_ACCESS_SECRET=
    APP_KEYS=
    API_TOKEN_SALT=
    JWT_SECRET=
    ADMIN_JWT_SECRET=
    TRANSFER_TOKEN_SALT=

    Set the variable values to reference your own information as follows:

    • HOST: Set to 0.0.0.0. This tells Strapi to listen for connections on all interfaces.
    • NODE_ENV: Set to production. This disables development-only features and enables our production-specific configuration.
    • DATABASE_CLIENT: Set to postgres to use a PostgreSQL database instead of a local SQLite database.
    • DATABASE_URL: The connection string to connect to and authenticate with the PostgreSQL database. Set this to the psql connection string you copied from your Koyeb database detail page and append ?ssl_mode=require to the end to force the connection to use TLS/SSL.
    • S3_ENDPOINT: The object storage bucket endpoint URL. Enter the "Endpoint" value you copied from Backblaze B2 (this should not include a protocol specification).
    • S3_REGION: The region where the object storage bucket is hosted. Enter the region embedded in the endpoint URL. For instance if the S3_ENDPOINT is s3.eu-central-003.backblazeb2.com, the S3_REGION should be set to eu-central-003.
    • S3_BUCKET: The name of your object storage bucket. Enter the bucket name copied from Backblaze B2.
    • S3_ACCESS_KEY_ID: The key ID to use when authenticating to Backblaze B2. Enter the keyID for the API key that you created in Backblaze.
    • S3_ACCESS_SECRET: The secret key to use when authenticating to Backblaze B2. Enter the applicationKey for the API key that you created in Backblaze.
    • APP_KEYS: A comma-separated list of application keys to be used by middleware. Generate these with openssl rand -base64 32. For example, to set two keys, it might look like: APP_KEYS=<first_key>,<second_key>.
    • API_TOKEN_SALT: The salt used to generate new API keys. Generate with openssl rand -base64 32.
    • JWT_SECRET: A random string used to create new JSON Web Tokens (JWT). Generate with openssl rand -base64 32.
    • ADMIN_JWT_SECRET: A separate random string used to create new JSON Web Tokens (JWT) for the admin panel. Generate with openssl rand -base64 32.
    • TRANSFER_TOKEN_SALT: A salt used to generate transfer tokens. Generate with openssl rand -base64 32.
  4. In the Instance section, select the Eco category and choose eMedium or larger. Strapi recommends a single core and 2GB of memory at a minimum.

  5. Click Deploy.

Koyeb will pull your application repository and then build and run it according to the build and start scripts found in the package.json file. During deployment, Strapi will create the appropriate data structures in the database according to the schema files generated by our content type definitions.

Blazing-Fast Deployments

Enjoy automatic continuous deployment, global load balancing, real-time metrics and monitoring, autoscaling, and more when your services run on Koyeb.

Deploy Now

Create a production administration account and test functionality

Once the deployment is complete, access your Strapi instance by visiting your Koyeb deployment URL. The application URL should have the following format:

https://<YOUR_APP_NAME>-<YOUR_KOYEB_ORG>-<HASH>.koyeb.app

Here, you can confirm that Strapi is running in production mode:

Strapi confirm production mode

Since Strapi is only focused on providing a content backend, this sparse page is expected.

Next, append /admin on the end of the URL to access the admin panel. On your first visit, you will be prompted to create a new admin account, mirroring the process we performed earlier. This time, the admin account is for the production instance:

Strapi admin account creation

After creating an account, you will be taken to the administration dashboard.

Test media uploads

First, test that we are able to upload new media files to our object storage bucket.

Click Media Library in the left-hand navigation menu and then click Add new assets:

Add new media assets

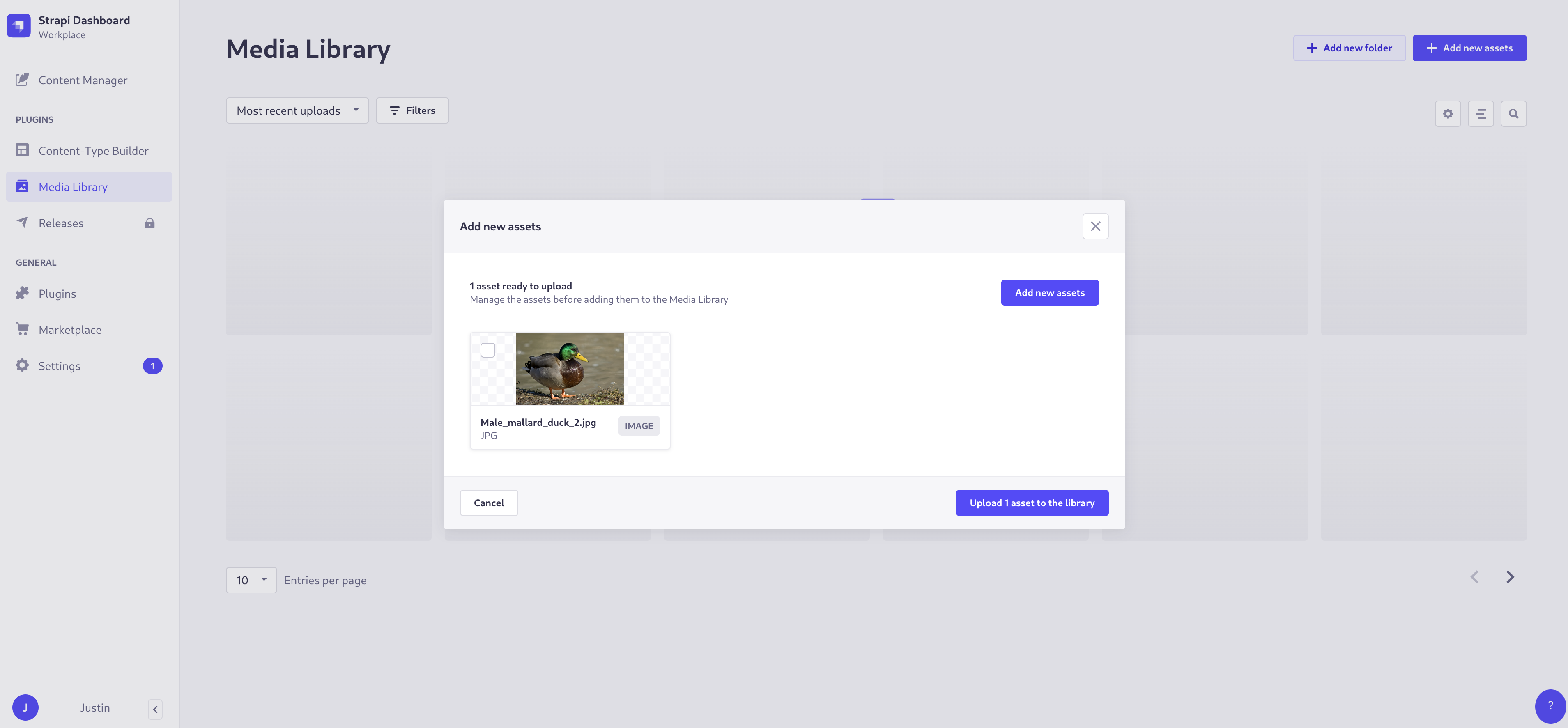

Click Browse files and select an image from your computer. Click Upload 1 asset to the library to upload the new image:

Upload image

Select the image and click the link icon to copy the image to your clipboard. Paste it to confirm that the image is being served from your object storage bucket.

Create new content

Next, click Content Manager in the left-hand navigation menu. The content types you defined during development will be displayed under the Content Types section:

Strapi content types displayed

Click Create new entry on the Posts type to create your first post. Fill out the title and body fields and choose a published date:

New post content

In the body, change the input type to Image to insert an image:

Insert image

Select the image you uploaded and click Finish to insert it into the post:

Add image to post

Click Save when finished. Click Publish to set the post as public.

Next, click the Tag collection type and click Create new entry. Create a few tags and link them to the post you just created in the posts field:

New tags

Select the tags you created and click Publish to make them live.

Make content available to unauthenticated users

The post and tags we created are now marked as published. However, they are still not accessible to unauthenticated users. To fix this, click Settings in the left-hand navigation menu and then select Roles under the Users & Permissions Plugin heading (not the one under "Administration Panel"):

Configure roles

Click Public to modify the permissions of unauthenticated users.

On the next page, check the find and findOne boxes in both the Post and Tag sections:

Make content publicly accessible

Click Save when you are finished.

Access the content

Now, we can test that we're able to access the published content.

In your browser, visit your Strapi instance's URL with the /api/posts path. If you click the "Pretty-print" box, you should see something like this:

{
  "data": [
    {
      "id": 3,
      "attributes": {
        "title": "Welcome to Strapi on Koyeb",
        "body": [
          {
            "type": "heading",
            "level": 2,
            "children": [
              {
                "text": "Hello, world!",
                "type": "text"
              }
            ]
          },
          {
            "type": "paragraph",
            "children": [
              {
                "text": "We're here to test Strapi's functionality in production.",
                "type": "text"
              }
            ]
          },
          {
            "type": "image",
            "image": {

                 . . .

              "provider": "aws-s3",
              "createdAt": "2024-05-23T11:12:26.709Z",
              "updatedAt": "2024-05-23T11:12:26.709Z",
              "previewUrl": null,
              "alternativeText": "Male_mallard_duck_2.jpg",
              "provider_metadata": null
            },
            "children": [
              {
                "text": "",
                "type": "text"
              }
            ]
          }
        ],
        "published": "2024-05-23",
        "createdAt": "2024-05-23T10:40:17.098Z",
        "updatedAt": "2024-05-23T11:19:15.033Z",
        "publishedAt": "2024-05-23T10:42:32.172Z"
      }
    }
  ],
  "meta": {
    "pagination": {
      "page": 1,
      "pageSize": 25,
      "pageCount": 1,
      "total": 1
    }
  }
}

Check other URLs paths like /api/posts/1, /api/tags, /api/tags/1. They should similarly display the content we created in the admin interface.

To display content along with their relations, append ?populate=* to the end of the URL. For instance, for /api/posts/1?populate=* you might see something like this:

{
  "data": {
    "id": 3,
    "attributes": {

      . . .

      "tags": {
        "data": [
          {
            "id": 3,
            "attributes": {
              "name": "introduction",
              "createdAt": "2024-05-23T10:44:09.682Z",
              "updatedAt": "2024-05-23T10:44:09.682Z",
              "publishedAt": "2024-05-23T10:45:39.201Z"
            }
          },
          {
            "id": 4,
            "attributes": {
              "name": "testing",
              "createdAt": "2024-05-23T10:44:24.658Z",
              "updatedAt": "2024-05-23T10:44:24.658Z",
              "publishedAt": "2024-05-23T10:45:39.201Z"
            }
          }
        ]
      }
    }
  },
  "meta": {

  }
}

This confirms that the content is available through the API as expected. Your Strapi instance is fully up and running in production.

No StressOps

Run your services on the best serverless platform and enjoy the built-in CI/CD pipeline, global load balancing, real-time metrics and monitoring, autoscaling, and more.

Deploy Now

Conclusion

In this guide, we showed how to set up a Strapi instance in production to serve as the backend for contnet-focused sites and applications. We created a new Strapi instance locally to establish content types and add object storage configuration. We set up an external PostgreSQL database and a Backblaze B2 object storage bucket to hold our data and assets. Afterwards, we deployed a production instance of Strapi and tested content creation, publication, permissions, and access.

Next, you may wish to connect your Strapi instance with a frontend app that can consume the content through its APIs. The Strapi documentation includes information on integrating with many frontends and configuring advanced functionality. Use this basic configuration as a starting point to build the content-driven site perfect for your needs.

Koyeb

Welcome to Koyeb

Koyeb is a developer-friendly serverless platform to deploy any apps globally.

  • Start for free, pay as you grow
  • Deploy your first app in no time
Start for free
The fastest way to deploy applications globally.
